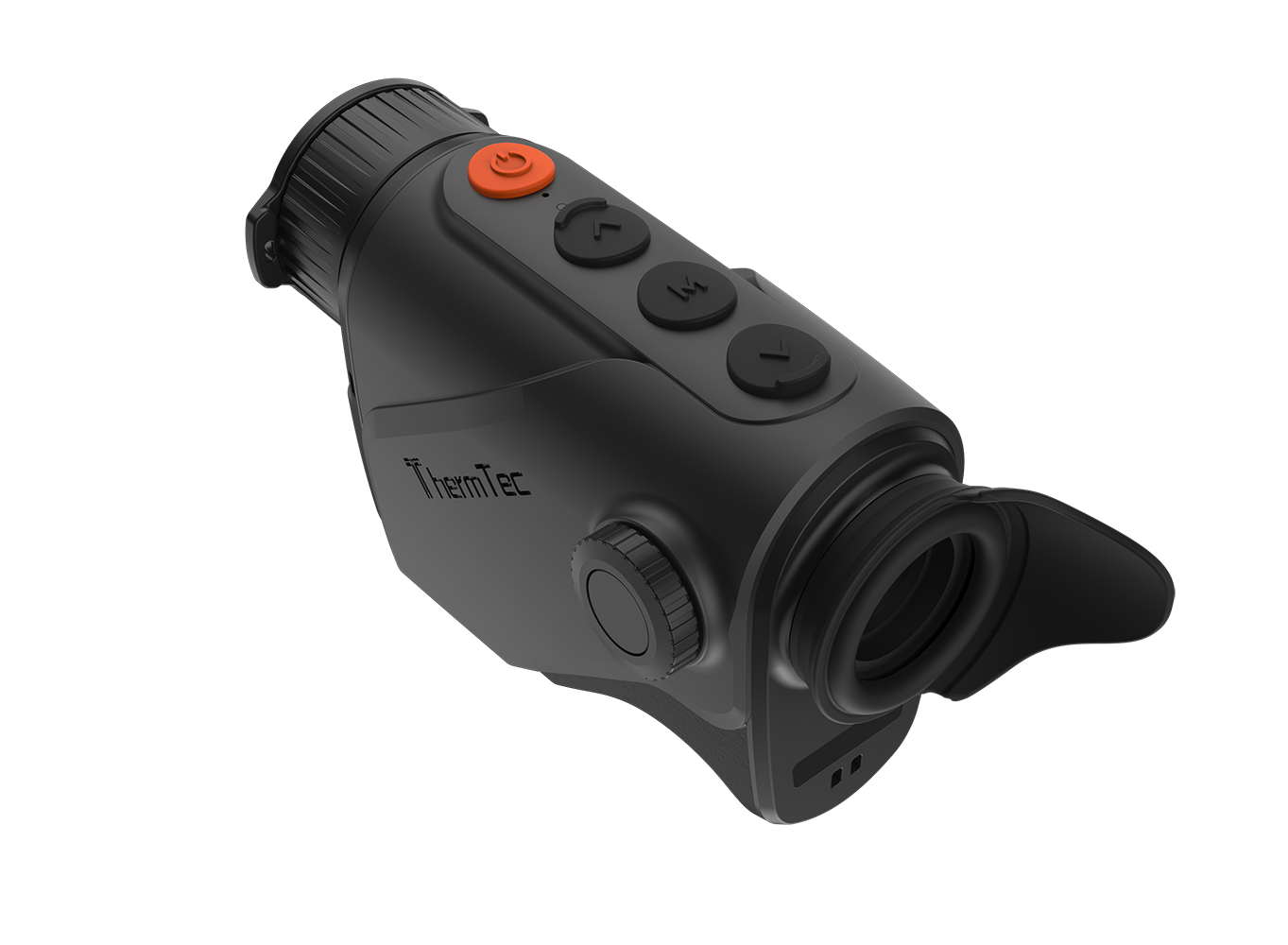

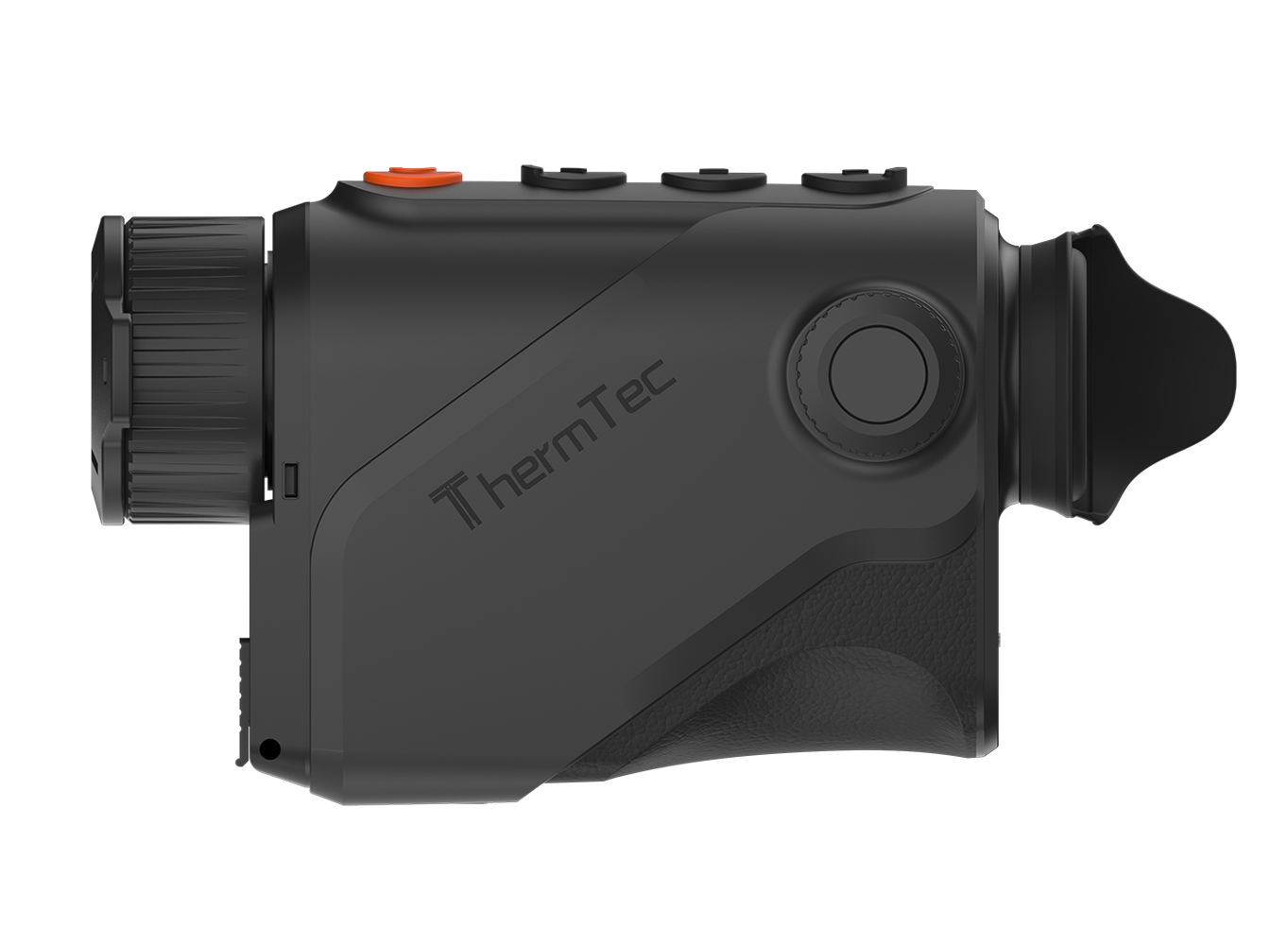

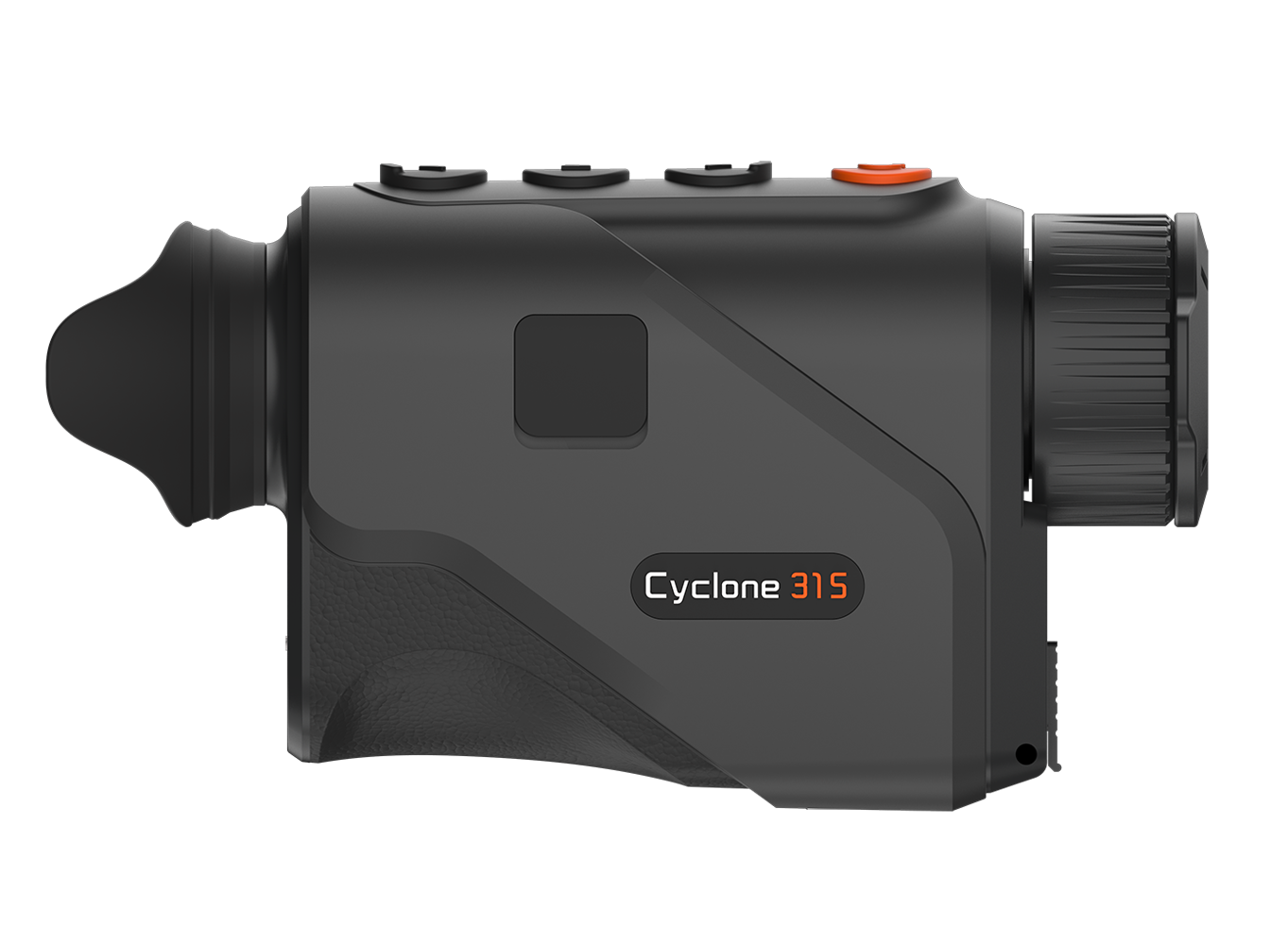

ThermTec Cyclone 315
Direct leverbaar
Pay securely with
The ThermTec Cyclone 315 is a compact thermal imaging monocular with a 384×288 sensor, 12 μm pixel pitch and a 15 mm F1.0 objective. With detection range up to 750 m, it is designed for portable observation and straightforward operation.
Thermal image and display
The sensor runs at 50 Hz and ThermTec specifies a NETD of 20 mK @300K. The 0.39-inch AMOLED display has a resolution of 1024×768.
AI Distance Measurement
AI Distance Measurement provides digital distance estimation without a physical laser rangefinder. Picture-in-Picture, Heat Track, audio and photo/video recording are integrated.
Replaceable battery
The Cyclone uses one replaceable 18650 Li-ion battery with a stated runtime of up to 10 h.
Key features
- 384×288 sensor
- 12 μm pixel pitch
- 20 mK @300K NETD
- 50 Hz
- 15 mm F1.0 objective
- 1.4x base magnification
- 1x / 2x / 4x digital zoom
- Detection range up to 750 m
- 1024×768 AMOLED
- 32 GB internal storage
- AI Distance Measurement
- 10 h battery life
- IP67
| Brand | Thermtec |
| Series | Cyclone |
| Product code | Cyclone 315 |
| Optical magnification | 1.4x |
| Objective diameter | 15 mm (F1.0) |
| Field of view at 100 m | 30.7 × 23.0 m |
| Eye relief | 20 mm |
| Sensor resolution | 384×288 |
| Pixel pitch | 12 μm |
| Thermal sensitivity (NETD mK) | 20 mK @300K |
| Frame rate (Hz) | 50 Hz |
| Display type | AMOLED |
| Display resolution | 1024×768 |
| Digital magnification | 1x, 2x, 4x |
| Thermal device type | Monoculair |
| Detection range | 750 m |
| Laser rangefinder | No |
| Internal memory | 32 GB |
| Battery type | Verwisselbare 1× 18650 Li-ion |
| Battery life | 10 uur |
| IP rating | IP67 |
| Dimensions | 139 × 76 × 54 mm |
| Weight | 255 g |
