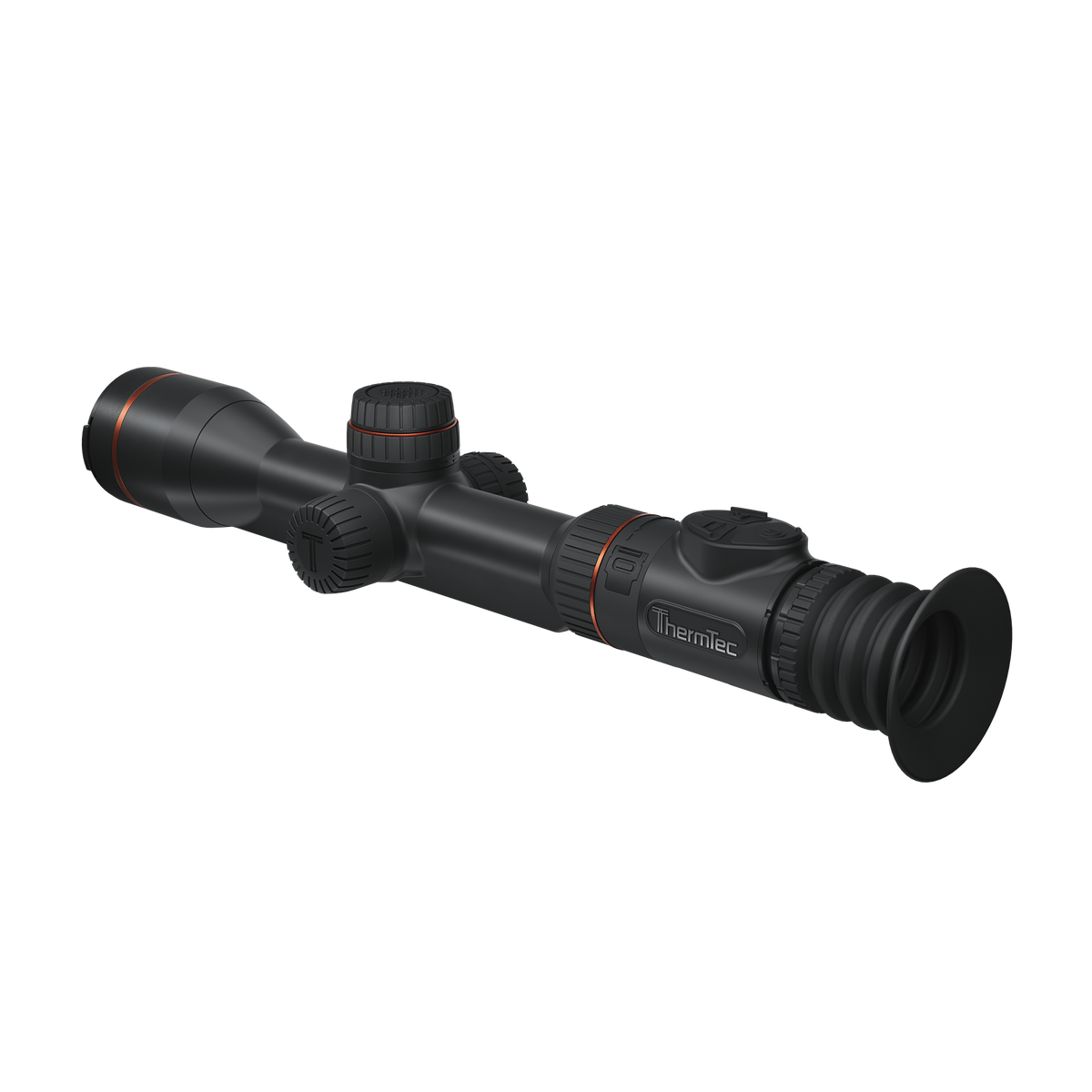

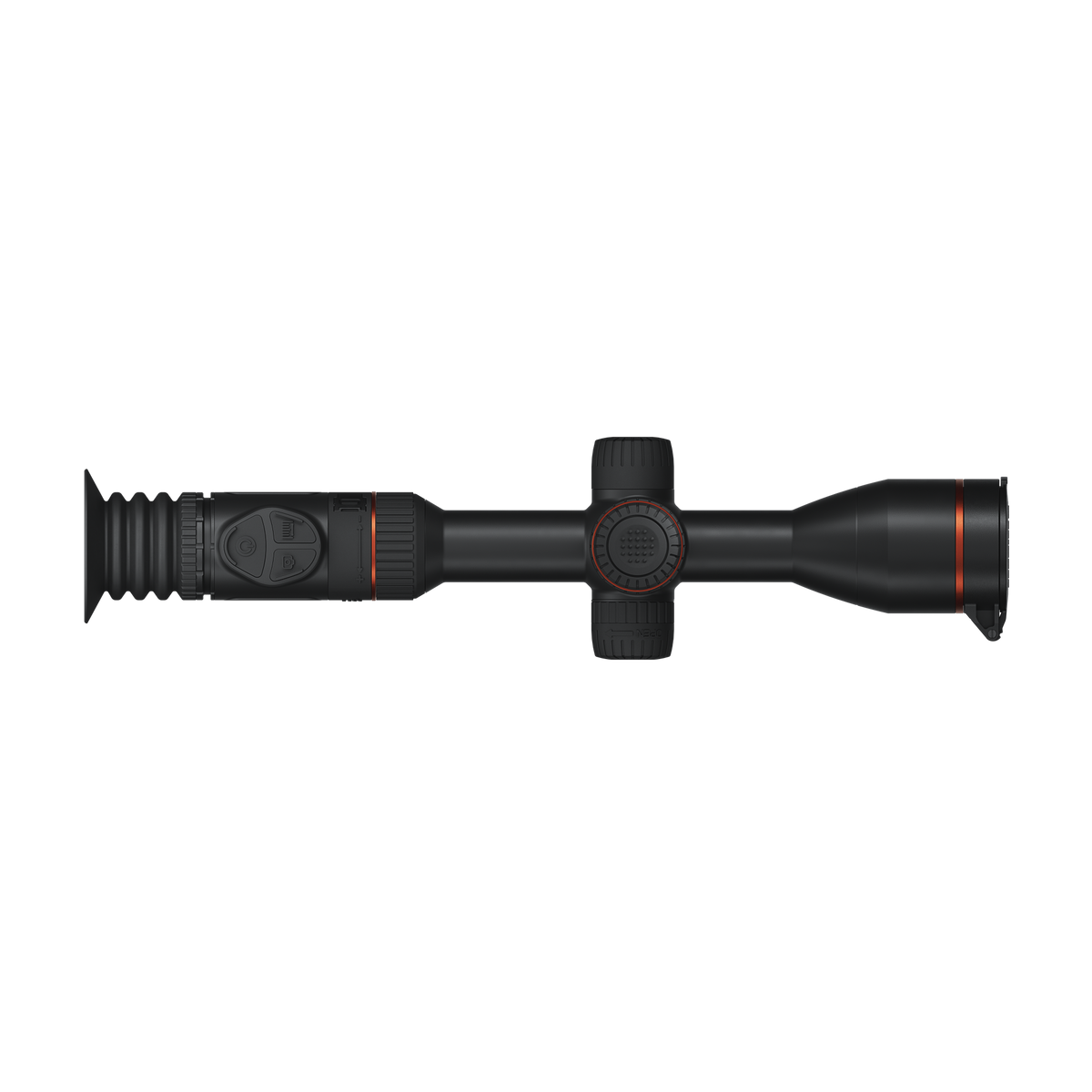

The ThermTec ORYX-LR 635 is a thermal imaging riflescope with a 640×512 sensor, integrated 1200 m laser rangefinder and ballistic calculator. The 35 mm F0.8 objective provides 2.6x base magnification and detection range up to 1800 m.
640×512 sensor and 2560×2560 OLED display
The 12 μm sensor has a NETD of ≤15 mK and runs at 50 Hz. The 1.03-inch OLED display has a resolution of 2560×2560.
LRF and ballistic functions
The integrated laser rangefinder measures up to 1200 m. Picture-in-Picture, RAV, audio recording and six zeroing profiles are also available.
Mounting and operation
The LR version additionally features ThermTec's Rail Mount Alignment System for fixed horizontal alignment on the rail. The central focus turret allows focusing without having to reach for the objective ring.
Key features
- 640×512 / 12 μm sensor
- NETD ≤15 mK
- 50 Hz
- 35 mm F0.8 objective
- 2.6x base magnification
- 1–4x digital zoom
- Detection range up to 1800 m
- LRF up to 1200 m
- Ballistic calculator
- 2560×2560 OLED
- 64 GB internal storage
- 21700 6000 mAh battery
- 8 h battery life
- IP67
- 6000 J recoil resistance
| Brand | Thermtec |
| Series | ORYX |
| Product code | ORYX-LR 635 |
| Optical magnification | 2.6x |
| Objective diameter | 35 mm (F0.8) |
| Field of view at 100 m | 21.9 × 17.6 m |
| Eye relief | 60 mm |
| Focusing | Central Turret Focus |
| Reticle | Yes |
| Reticle color | 6 |
| Tube diameter | 30 mm |
| Sensor resolution | 640×512 |
| Pixel pitch | 12 μm |
| Thermal sensitivity (NETD mK) | ≤15 mK |
| Frame rate (Hz) | 50 Hz |
| Display type | OLED |
| Display resolution | 2560×2560 |
| Digital magnification | 1–4x |
| Thermal device type | Thermal imaging riflescope |
| Detection range | 1800 m |
| Laser rangefinder | Yes |
| Rangefinder range | 1200 m |
| Internal memory | 64 GB |
| Battery type | Replaceable 1× 21700 battery, 6000 mAh |
| Battery life | 8 hours |
| Recoil resistance | 6000 J |
| IP rating | IP67 |
| Incl. mounting rings | n/a – integrated rail mount* |
| Dimensions | 385 × 93 × 77 mm |
| Weight | 1,05 kg |
